VT,415R3/110R3 V, 50VA

₹11,412.05
+ ₹2,054.17 (18% GST)
Price Excluding Taxes ₹11,412.05
+ (18% GST applicable) ₹2,054.17
Price Including Taxes ₹13,466.22
In Stock
SKU
0477A0212
Available Stock Quantity: 3
Is Returnable: No
Ageing: 5 Years
Unit of Measurement: NOS

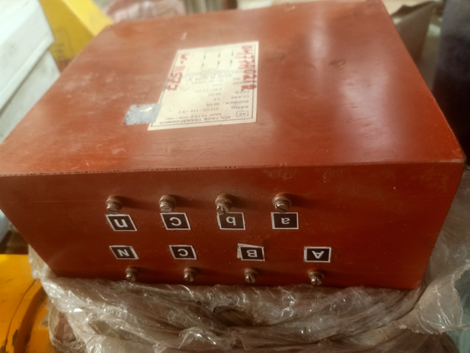

VT,415R3/110R3 V, 50VA
Short Description:- VT,415R3/110R3 V, 50VA
Technical Specification:- Insulation Class:- E
Oil Immersed:- Resin Cast Not Oil Immerse
Phase:- 1
Voltage Ratio:- 415:110
Additional Specification:- Type of Voltage Transformer:- Cast Resin
Installation of Potential Transformer:- Indoor
Type of System Voltage:- Three phase
Rated Transformation Ratio:- 415V/110V
Rated Frequency(Hz):- 50 Hz
Rated Burden in VA:- 50VA
Accuracy Class:- 1
Insulation Class:- E
Service Condition:- Dusty,
Ambient Temperature:- 50°C
Height:- 145mm
Width:- 100mm
Length:- 115mm
Bolt To Bolt Length:- 130mm
Bolt To Bolt Width:- 125mm
More Information
HSN Code 85041090
Shipping Option Self pick up
Available for Everyone
Organization Name M-S TATA STEEL LIMITED
Packed Yes
Rusted No
