SUPRT;DWG:ACP-E-SESP-SP-310
₹21,825.00
+ ₹3,928.50 (18% GST)
| Price Excluding Taxes | ₹21,825.00 |
| + (18% GST applicable) | ₹3,928.50 |
| Price Including Taxes | ₹25,753.50 |
In Stock
SKU
4002000336
Available Stock Quantity:
8
Is Returnable:
No
Ageing:
6 Years
Unit of Measurement:
EA
SUPRT;DWG:ACP-E-SESP-SP-310

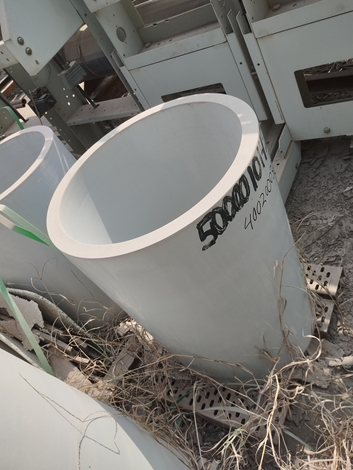

Support
Material:- High Alumina (40-45 Pct)
Drawing:- ACP-E-SESP-SP-310 Rev:0
FFT:- Tensile Strength:- 1500kg/cm² Min @ 4000C
Flexural Strength:- 1800kg/cm² Min @4000c
Compressive Strength:- 6500kg/cm² Min @ 4000c
Water Absorption, Non Dielectric Strength:- 75 0 VRMS/Mil @2500c
Colour:- White
Colour of Glaze:- Brown
Continuos Operation, W/Failure
Ambien Temperature:- 0 To 450 °C, Under following condition
-Mechanical:-5.0 MT Axial Compressive Load, Electrical-Full Wave rectified
Frequency: 50 HZ
Voltage:- 105000 V AP Plied End to End, Peak Wave Form Value,Impulse Flash Over Voltage: 250 kVp,Dry Flash Over Voltage: 140 kVp
Wet Flash Over Voltage: 80 kVp
Leakage Distance Ext: 495
Leakage Distance Int:-495 Insulatorf/Clinker Cooler ESP
Drawing Number:-ACP-E- SESP-SP-310
Material:- High Alumina (40-45 Pct)
Drawing:- ACP-E-SESP-SP-310 Rev:0
FFT:- Tensile Strength:- 1500kg/cm² Min @ 4000C
Flexural Strength:- 1800kg/cm² Min @4000c
Compressive Strength:- 6500kg/cm² Min @ 4000c
Water Absorption, Non Dielectric Strength:- 75 0 VRMS/Mil @2500c
Colour:- White
Colour of Glaze:- Brown
Continuos Operation, W/Failure
Ambien Temperature:- 0 To 450 °C, Under following condition
-Mechanical:-5.0 MT Axial Compressive Load, Electrical-Full Wave rectified
Frequency: 50 HZ
Voltage:- 105000 V AP Plied End to End, Peak Wave Form Value,Impulse Flash Over Voltage: 250 kVp,Dry Flash Over Voltage: 140 kVp
Wet Flash Over Voltage: 80 kVp
Leakage Distance Ext: 495
Leakage Distance Int:-495 Insulatorf/Clinker Cooler ESP
Drawing Number:-ACP-E- SESP-SP-310
| HSN Code | 73089090 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | NUVOCO VISTAS CORPORATION LIMITED |
| Packed | No |
| Rusted | No |
