SPAV ENGINEERSTS XDMZ64DTK, 32I 24VDC PV-06TSXDMZ64DTK, 32I 24VDC, PV-06, RL-05
₹85,797.80
(Inclusive of all taxes)
In Stock
SKU
INSMHSO773
Available Stock Quantity:
1
Is Returnable:
No
Ageing:
5.13 years
Unit of Measurement:
Nos
SPAV ENGINEERSTSXDMZ64DTK, 32I 24VDC PV-06TSXDMZ64DTK, 32I 24VDC, PV-06, RL-05

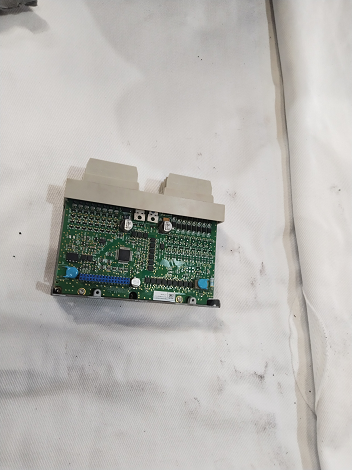

The TSXDMZ64DTK is a discrete solid state I/O base from the Modicon TSX Micro range
Input/Output Configuration :- 32 discrete inputs and 32 discrete outputs, both via HE-10 connectors
Input Voltage :- 24V DC with positive logic
Input Current :- 3.5 mA
Output Voltage :- 24V DC
Output Current :- 0.1 mA
Power Dissipation :- 3.5W by module output, 0.15W by channel output, and 5W input
Current Consumption :- 197 mA
Isolation Voltage :- 1500V
Response Time :- 0.1 to 7.5 ms for both input and output transitions
Protection Features :- Overvoltage protection by zener diode, short-circuit protection by current limiter and electronic circuit breaker, and reverse polarity protection by reverse diode on power supply
Weight :- 0.41 kg .
Input/Output Configuration :- 32 discrete inputs and 32 discrete outputs, both via HE-10 connectors
Input Voltage :- 24V DC with positive logic
Input Current :- 3.5 mA
Output Voltage :- 24V DC
Output Current :- 0.1 mA
Power Dissipation :- 3.5W by module output, 0.15W by channel output, and 5W input
Current Consumption :- 197 mA
Isolation Voltage :- 1500V
Response Time :- 0.1 to 7.5 ms for both input and output transitions
Protection Features :- Overvoltage protection by zener diode, short-circuit protection by current limiter and electronic circuit breaker, and reverse polarity protection by reverse diode on power supply
Weight :- 0.41 kg .
Weight | 0.51 kgs |
---|---|
HSN Code | 85362030 |
Shipping Option | Self pick up |
Available for | Everyone |
Organization Name | SUDARSHAN CHEMICAL INDUSTRIES LIMITED |
Packed | Yes |
Packed | Yes |
Rusted | No |
Rusted | No |
Make | SPAV ENGINEERS |
