Pos & Synchr Controller
₹112,221.85
+ ₹20,199.93 (18% GST)
| Price Excluding Taxes | ₹112,221.85 |
| + (18% GST applicable) | ₹20,199.93 |
| Price Including Taxes | ₹132,421.78 |
In Stock
SKU
0785A0431
Available Stock Quantity:
1
Is Returnable:
No
Ageing:
5 Years
Unit of Measurement:
NOS

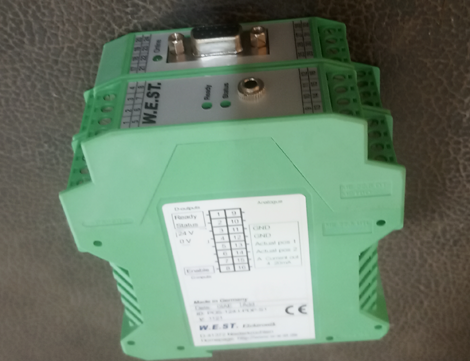

Pos & Synchr Controller
Short Description :- Pos & Synchr Controller
Part No :- POS-124-I-PDP-1121
Make :- W.E.S.T. ELEKTRONIK GMBH
Additional Specification :- W.E.S.T. Controller for hydraulic control
ID :- POS-124-I-PDP-S1-1121
Version :- 1121
Desciption :- Double stage module without digital SSI-interface with analogue
4ÿ 20 mA output,
Housing Width- 45mm
ANALOG SIGNALS:-
1)Analogue position actual value (X1), range 0ÿ 100% corresponds to 0ÿ 10V or 4ÿ 20 mA
2)Analogue position actual value (X2), range 0ÿ 100% corresponds to 0ÿ 10V or 4ÿ 20 mA
3)Analogue differential output :- 4-20 mA
DIGITAL SIGNALS:-
1)Enable input
2)Synchronisation error input
3)Ready output
TECHNICAL DATA:-
Supply voltage :- 24V DC
Current requirement :- 500mA
External protection :- 1 medium time lag
Digital Inouts :- Logic 0 < 2V
Logic 1 > 12V; max:- 10mA
Analogue inputs (sensor and demand value signal) :- 0ÿ 10V; 33 kOhm :- 4ÿ 20mA; 250 Ohm
Signal resolution:- 0.01(internally 0.0031) inc. oversampling
Analogue outputs:- Current:- 4ÿ 20; 390 Ohm maximum load
Signal resolution :- 0.024
Profibus DP :- 9.6,19,2,93.75,187.5,500,1500,3000
Baud rate :- 6000, 12000 kbits/s
ID Number :- 1810h
Housing :- Snap-on module to EN 50022
PA 6.6 polyamide
Flammability class V0 (UL94)
Protection class :- IP20
Temperature range :- 10ÿ 50
Storage Temperature :- 20... 70
Humidity:- <95 (non-condensing)
FEATURES:-
1)Two independent positioning axes
2)Can be combined for synchronization controls
3)Command position parameter, actual value response, on loop control byte and status byte via fieldbus Profibus DP.
4)Command position parameter, actual value response, on loop control byte and status byte via fieldbus Profibus DP.
5)Superimposed synchronization controller as PT1 actuator
6)Usable with zero lapped control valves
7)Fault diagnosis and extended function checking
8)Simplified parameterization with WPC-300 software version 3.2
Custom Clarification :-
Item Description
Positioning and Synchronisation Controller
Function of the Item
Positioning and sunchroinisation of hydraulic cylinders
Name of the Main Equipment where the Item is Used
SCP machine in coke plant
Function of the Main Equipment & Location of the Main Equipment
Stamping, charging and pushing
Part No :- POS-124-I-PDP-1121
Make :- W.E.S.T. ELEKTRONIK GMBH
Additional Specification :- W.E.S.T. Controller for hydraulic control
ID :- POS-124-I-PDP-S1-1121
Version :- 1121
Desciption :- Double stage module without digital SSI-interface with analogue
4ÿ 20 mA output,
Housing Width- 45mm
ANALOG SIGNALS:-
1)Analogue position actual value (X1), range 0ÿ 100% corresponds to 0ÿ 10V or 4ÿ 20 mA
2)Analogue position actual value (X2), range 0ÿ 100% corresponds to 0ÿ 10V or 4ÿ 20 mA
3)Analogue differential output :- 4-20 mA
DIGITAL SIGNALS:-
1)Enable input
2)Synchronisation error input
3)Ready output
TECHNICAL DATA:-
Supply voltage :- 24V DC
Current requirement :- 500mA
External protection :- 1 medium time lag
Digital Inouts :- Logic 0 < 2V
Logic 1 > 12V; max:- 10mA
Analogue inputs (sensor and demand value signal) :- 0ÿ 10V; 33 kOhm :- 4ÿ 20mA; 250 Ohm
Signal resolution:- 0.01(internally 0.0031) inc. oversampling
Analogue outputs:- Current:- 4ÿ 20; 390 Ohm maximum load
Signal resolution :- 0.024
Profibus DP :- 9.6,19,2,93.75,187.5,500,1500,3000
Baud rate :- 6000, 12000 kbits/s
ID Number :- 1810h
Housing :- Snap-on module to EN 50022
PA 6.6 polyamide
Flammability class V0 (UL94)
Protection class :- IP20
Temperature range :- 10ÿ 50
Storage Temperature :- 20... 70
Humidity:- <95 (non-condensing)
FEATURES:-
1)Two independent positioning axes
2)Can be combined for synchronization controls
3)Command position parameter, actual value response, on loop control byte and status byte via fieldbus Profibus DP.
4)Command position parameter, actual value response, on loop control byte and status byte via fieldbus Profibus DP.
5)Superimposed synchronization controller as PT1 actuator
6)Usable with zero lapped control valves
7)Fault diagnosis and extended function checking
8)Simplified parameterization with WPC-300 software version 3.2
Custom Clarification :-
Item Description
Positioning and Synchronisation Controller
Function of the Item
Positioning and sunchroinisation of hydraulic cylinders
Name of the Main Equipment where the Item is Used
SCP machine in coke plant
Function of the Main Equipment & Location of the Main Equipment
Stamping, charging and pushing
| HSN Code | 72044900 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | Yes |
| Rusted | No |
