ACTTR PNEUM; M:124-2SP07U00 1000,ROT
₹63,200.00
+ ₹11,376.00 (18% GST)
| Price Excluding Taxes | ₹63,200.00 |
| + (18% GST applicable) | ₹11,376.00 |
| Price Including Taxes | ₹74,576.00 |
In Stock
SKU
5515001354
Available Stock Quantity:
1
Is Returnable:
No
Ageing:
4 Years
Unit of Measurement:
EA

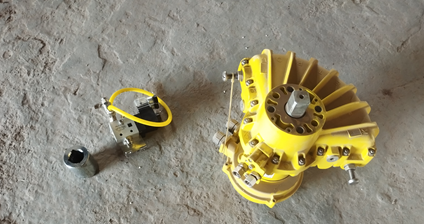

ACTTR PNEUM; M:124-2SP07U00 1000,ROT
Pneumatic Actuator
Type:- Rotary
Power Rating:- 110/220 VAC 50HZ
Application:- ETIL Packer
FFT:- Torque Rating:- 5000 LBF/ 575 NM At 7 Bar
Swivel Angle Range:- 80-102 Deg
Flow Control Gate Mounted with limit Switch Box (Contact Arrangement: 2No-2NC) On Off Indication
Mounted Assembly
Operation:- SoleNoid Valve (Contact Arrangement:- 1No-1NC)
Mounted Tube D to Actuator via Namur Interface Module
One SoleNoid Valve for Closing and One SoleNoid Valve for opening with Coil
Displaced Volume :-86 in³
Finish:- Epoxy Stove Enamel
Manufacturer:- KINETROL
Model No:- 124-2SP07U00 1000
Make:KINETROL
Type:- Rotary
Power Rating:- 110/220 VAC 50HZ
Application:- ETIL Packer
FFT:- Torque Rating:- 5000 LBF/ 575 NM At 7 Bar
Swivel Angle Range:- 80-102 Deg
Flow Control Gate Mounted with limit Switch Box (Contact Arrangement: 2No-2NC) On Off Indication
Mounted Assembly
Operation:- SoleNoid Valve (Contact Arrangement:- 1No-1NC)
Mounted Tube D to Actuator via Namur Interface Module
One SoleNoid Valve for Closing and One SoleNoid Valve for opening with Coil
Displaced Volume :-86 in³
Finish:- Epoxy Stove Enamel
Manufacturer:- KINETROL
Model No:- 124-2SP07U00 1000
Make:KINETROL
| HSN Code | 84818090 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | NUVOCO VISTAS CORPORATION LIMITED |
| Packed | No |
| Rusted | Yes |
