Pneucon Valves, Size- 80mm
₹43,650.00
+ ₹7,857.00 (18% GST)
| Price Excluding Taxes | ₹43,650.00 |
| + (18% GST applicable) | ₹7,857.00 |
| Price Including Taxes | ₹51,507.00 |
In Stock
SKU
IK2T416000
Available Stock Quantity:
2
Is Returnable:
No
Ageing:
3.23 years
Unit of Measurement:
Nos

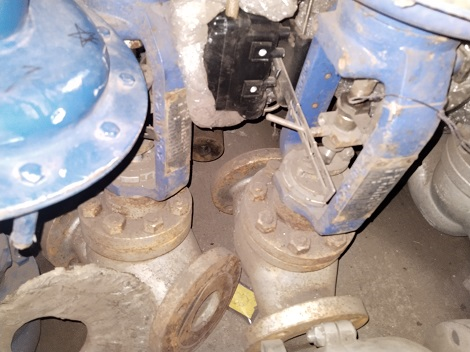

Pneucon Valves, Size- 80mm
Size :- 80mm
PFA lined on/off control valve
size :- 3"
Body Material :- Typically made from ductile iron or stainless steel with a thick PFA lining for corrosion resistance
Size :- 3 inches
Connections :- Flanged ends, usually conforming to ANSI standards
Seats :- PTFE or RPTFE for tight sealing and chemical resistance
Stem: Blow :- out proof design with PTFE chevron packing to ensure stem seal integrity
Temperature Range :-Generally from -10°C to 200°C (14°F to 392°F)
Pressure Rating :- Often rated for ANSI Class 150
Actuation :- Can be manually operated or equipped with pneumatic or electric actuators for automated control
Flow Characteristics :- Designed for full port flow to minimize pressure drop and ensure efficient operation
Additional Features :- Anti-static grounding device, metal-to-metal body joints, and adjustable PTFE chevron packing to reduce fugitive emissions.
PFA lined on/off control valve
size :- 3"
Body Material :- Typically made from ductile iron or stainless steel with a thick PFA lining for corrosion resistance
Size :- 3 inches
Connections :- Flanged ends, usually conforming to ANSI standards
Seats :- PTFE or RPTFE for tight sealing and chemical resistance
Stem: Blow :- out proof design with PTFE chevron packing to ensure stem seal integrity
Temperature Range :-Generally from -10°C to 200°C (14°F to 392°F)
Pressure Rating :- Often rated for ANSI Class 150
Actuation :- Can be manually operated or equipped with pneumatic or electric actuators for automated control
Flow Characteristics :- Designed for full port flow to minimize pressure drop and ensure efficient operation
Additional Features :- Anti-static grounding device, metal-to-metal body joints, and adjustable PTFE chevron packing to reduce fugitive emissions.
| HSN Code | 84818090 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | SUDARSHAN CHEMICAL INDUSTRIES LIMITED |
| Packed | No |
| Rusted | No |
| Make | Pneucon Valves |
