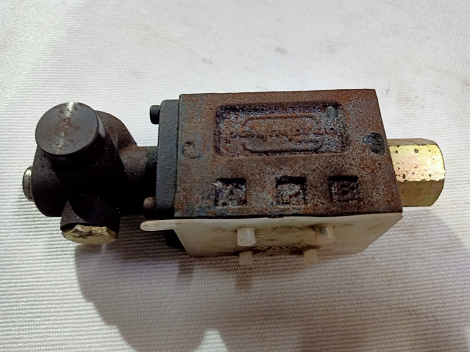

Hand Lever valve 4DL06-DD
₹3,465.00
+ ₹623.70 (18% GST)
| Price Excluding Taxes | ₹3,465.00 |
| 18% GST applicable | ₹623.70 |
| Price Including Taxes | ₹4,088.70 |
In Stock
SKU
LSM4DL06DD
Available Stock Quantity:
1
Is Returnable:
No
Ageing:
0.07 years
Unit of Measurement:
Nos
Hand Lever valve 4DL06-DD
Construction: The valve has a threaded body and is designed for mounting on subplates.
Mounting Position: It can be mounted in various orientations.
Flow Direction: The valve allows flow in different directions.
Maximum Operating Pressure: Up to 350 bar.
Fluid Temperature Range: Suitable for hydraulic oil with a viscosity range of 10 cSt to 380 cSt.
Fluid Cleanliness Requirement: Conforms to ISO 4406 20/18/15 or better.
Nominal Flow Handling Capacity: Refer to the performance curve for specific flow data.
Spool Type: Available as spring-centered, spring off-set, or detented model.
Mounting Position: It can be mounted in various orientations.
Flow Direction: The valve allows flow in different directions.
Maximum Operating Pressure: Up to 350 bar.
Fluid Temperature Range: Suitable for hydraulic oil with a viscosity range of 10 cSt to 380 cSt.
Fluid Cleanliness Requirement: Conforms to ISO 4406 20/18/15 or better.
Nominal Flow Handling Capacity: Refer to the performance curve for specific flow data.
Spool Type: Available as spring-centered, spring off-set, or detented model.
| Weight | 1.65 kgs |
|---|---|
| HSN Code | 84818030 |
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | SUDARSHAN CHEMICAL INDUSTRIES LIMITED |
| Packed | Yes |
| Rusted | No |
| Make | SPICA Hydraulics Ltd |
