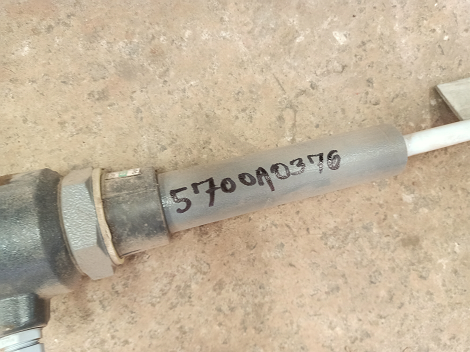

FIELD SNSR;RF BASED CAPACITANCE TYPE
₹8,496.80
+ ₹1,529.42 (18% GST)
| Price Excluding Taxes | ₹8,496.80 |
| + (18% GST applicable) | ₹1,529.42 |
| Price Including Taxes | ₹10,026.22 |
In Stock
SKU
5700A0376
Available Stock Quantity:
9
Is Returnable:
No
Ageing:
7 Years
Unit of Measurement:
NOS
FIELD SNSR;RF BASED CAPACITANCE TYPE
Field SNSR; RF Based Capacitance Type
Type:- RF Based Capacitance Type
Model Number:- ALC 830 D-12MM L-3000MM
Make:- NIVO
Input:- 100-240 VAC
Output:- NO+NC
Special Features:- Sensor With Accessories
Additional UMC Detail:-
NIVOLARM ALC 830 Housing Material Cast Aluminium Painting Polyurethane Protection
IP 67 Mounting Wall mounted Remote Cable Entry 3 Nos. M 16 Time Delay 2 to 20 sec adjustable Output 1 DPDT Relay Maximum Rating 5A at 230 VAC for non inductive load. Mains Voltage 85 Vac to 265 VAC 50 / 60 Hz Probe with Pre-amplifier S-61 Type Rod 12mm SS 316 Cable Entry M 16 Process Connection 1 BSP Male Steel Insulation PTFE up to 100 mm Insensitive Pipe CS 200 mm Rod 12 mm Dia SS 316 Temp. Max. 80 degree. Probe Length 3000mm
Type:- RF Based Capacitance Type
Model Number:- ALC 830 D-12MM L-3000MM
Make:- NIVO
Input:- 100-240 VAC
Output:- NO+NC
Special Features:- Sensor With Accessories
Additional UMC Detail:-
NIVOLARM ALC 830 Housing Material Cast Aluminium Painting Polyurethane Protection
IP 67 Mounting Wall mounted Remote Cable Entry 3 Nos. M 16 Time Delay 2 to 20 sec adjustable Output 1 DPDT Relay Maximum Rating 5A at 230 VAC for non inductive load. Mains Voltage 85 Vac to 265 VAC 50 / 60 Hz Probe with Pre-amplifier S-61 Type Rod 12mm SS 316 Cable Entry M 16 Process Connection 1 BSP Male Steel Insulation PTFE up to 100 mm Insensitive Pipe CS 200 mm Rod 12 mm Dia SS 316 Temp. Max. 80 degree. Probe Length 3000mm
| HSN Code | 90261020 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | Yes |
| Rusted | No |
