FIELD SNSR;LINEAR POSITION
₹69,319.80
+ ₹12,477.56 (18% GST)
Price Excluding Taxes | ₹69,319.80 |
+ (18% GST applicable) | ₹12,477.56 |
Price Including Taxes | ₹81,797.36 |
In Stock
SKU
5700A0428
Available Stock Quantity:
1
Is Returnable:
No
Ageing:
5 Years
Unit of Measurement:
NOS

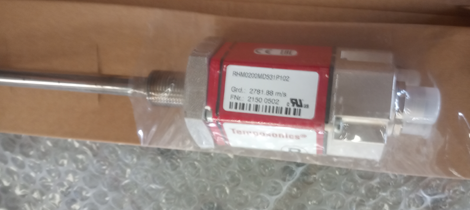

FIELD SNSR;LINEAR POSITION
Field Snsr;Linear Position
Type:- Linear Position
Model Number:- RHM0200MD531P102
Make:- MTS TEMPOSONIC
Input:- 24 VDC
Output:- Profibus DP
Special Features:- No Special Features
Additional UMC Detail:- R-Series Profibus-DP temposonic
Part No:- RHM0200MD531P102
Measuring range:- Profile style:- 50 to 5080 mm (2 to 200 in)
Rod style:- 50 to 7620 mm (2 to 300 in)
Operating voltage:- +24 VDC nominal (-15 or +20%)
Polarity protection:- up to -30VDC
Overvoltage protection:- up to 36VDC
Current drain:- 90mA typical
Dielectric withstand voltage:- 500V
(DC ground to machine ground)
Operating conditions:- Temperature:- -40 to +75°C, (-40 to +167°F)
Magnet type:- Captive-sliding magnet or floating (open ring) magnet
Mounting:- Any orientation. Threaded flange M18 x 1.5 or 3/4-16
UNF-3A
Part:- RHM0200MD531P102
Make:- MTS-TEMPOSONICS
Type:- Linear Position
Model Number:- RHM0200MD531P102
Make:- MTS TEMPOSONIC
Input:- 24 VDC
Output:- Profibus DP
Special Features:- No Special Features
Additional UMC Detail:- R-Series Profibus-DP temposonic
Part No:- RHM0200MD531P102
Measuring range:- Profile style:- 50 to 5080 mm (2 to 200 in)
Rod style:- 50 to 7620 mm (2 to 300 in)
Operating voltage:- +24 VDC nominal (-15 or +20%)
Polarity protection:- up to -30VDC
Overvoltage protection:- up to 36VDC
Current drain:- 90mA typical
Dielectric withstand voltage:- 500V
(DC ground to machine ground)
Operating conditions:- Temperature:- -40 to +75°C, (-40 to +167°F)
Magnet type:- Captive-sliding magnet or floating (open ring) magnet
Mounting:- Any orientation. Threaded flange M18 x 1.5 or 3/4-16
UNF-3A
Part:- RHM0200MD531P102
Make:- MTS-TEMPOSONICS
HSN Code | 85422100 |
---|---|
Shipping Option | Self pick up |
Available for | Everyone |
Organization Name | M-S TATA STEEL LIMITED |
Packed | Yes |
Rusted | No |
