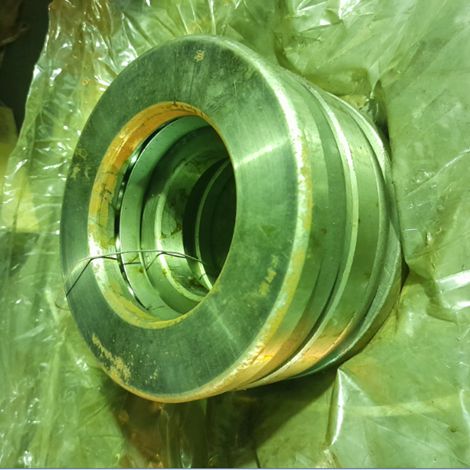

Double direction thrust Ball Bearing, SKF 52316
₹0.00
(Inclusive of all taxes)
In Stock
SKU
70214000020010
Available Stock Quantity:
2
Is Returnable:
No
Ageing:
11.57 Years
Unit of Measurement:
EA
Ball Bearing, SKF 52316
1. Bore diameter: 65 mm
2. OutSide Diameter: 140 mm
3. Height: 79mm
4. Basic Dynamic Load Rating: 159 kN
5.Cage: Sheet Metal
6. Axial load capability: Double-direction
7.Limiting Speed: 1800 r/min
8. Type of Bearing: Double direction thrust ball bearing
9. Description:- It is an axial bearing that permits rotation between parts. Thrust bearings support the axial thrust of both horizontal and vertical shafts. The functions are to prevent the shaft from drifting in the axial direction and to transfer thrust loads applied on the shaft.
Usage: Gear Boxes,Fliud control valves,machine tool tables and spindle,oil and gas rotary tables,screw jacks,vertical openers(spinning and weaving machines)
2. OutSide Diameter: 140 mm
3. Height: 79mm
4. Basic Dynamic Load Rating: 159 kN
5.Cage: Sheet Metal
6. Axial load capability: Double-direction
7.Limiting Speed: 1800 r/min
8. Type of Bearing: Double direction thrust ball bearing
9. Description:- It is an axial bearing that permits rotation between parts. Thrust bearings support the axial thrust of both horizontal and vertical shafts. The functions are to prevent the shaft from drifting in the axial direction and to transfer thrust loads applied on the shaft.
Usage: Gear Boxes,Fliud control valves,machine tool tables and spindle,oil and gas rotary tables,screw jacks,vertical openers(spinning and weaving machines)
| HSN Code | 848210 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Internal Buyers |
| Organization Name | STEEL AUTHORITY OF INDIA LTD |
| Packed | Yes |
| Rusted | No |
| Make | SKF |
| Part no | 52316 |
