Cylindrical Roller Bearing NU 207 ETVP2
₹4,452.14
+ ₹801.39 (18% GST)
| Price Excluding Taxes | ₹4,452.14 |
| + (18% GST applicable) | ₹801.39 |
| Price Including Taxes | ₹5,253.53 |
In Stock
SKU
102451
Available Stock Quantity:
4
Is Returnable:
No
Ageing:
<5 Years
Unit of Measurement:
Nos

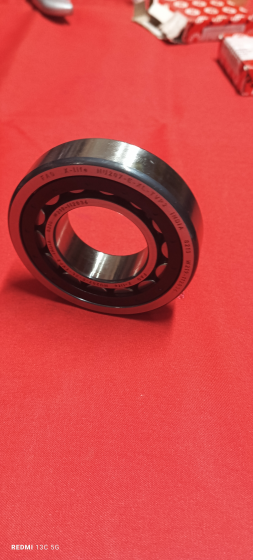

Cylindrical Roller Bearing NU 207 ETVP2
Cylindrical Roller Bearing (Single Row, NU Design) Model:- NU 207 ETVP2
Dimensions:-
Bore Diameter (d):- 35 mm
Outer Diameter (D):- 72 mm
Width (B):- 17 mm
Design Features:-
NU Type:- Two ribs on outer ring, no ribs on inner ring  allows axial displacement in both directions
E:- Increased load capacity
TVP2:- Solid window cage made from glass-fiber reinforced polyamide (PA66)
Radial Internal Clearance:- Typically CN (Normal) or C3 (Greater than normal)
Separable Design:- Facilitates mounting and disassembly
Operating Temperature Range:- Â30°C to +120°C
Load Ratings:-
Dynamic:- ~58Â59 kN
Static:- ~48Â50 kN
Speed Ratings:-
Reference Speed:- ~8300Â8500 rpm
Limiting Speed:- ~10000Â11000 rpm
Type:- Cylindrical Roller Bearing (Single Row, NU Design)
Dimensions:-
Bore Diameter (d):- 35 mm
Outer Diameter (D):- 72 mm
Width (B):- 17 mm
Design Features:-
NU Type:- Two ribs on outer ring, no ribs on inner ring  allows axial displacement in both directions
E:- Increased load capacity
TVP2:- Solid window cage made from glass-fiber reinforced polyamide (PA66)
Radial Internal Clearance:- Typically CN (Normal) or C3 (Greater than normal)
Separable Design:- Facilitates mounting and disassembly
Operating Temperature Range:- Â30°C to +120°C
Load Ratings:-
Dynamic:- ~58Â59 kN
Static:- ~48Â50 kN
Speed Ratings:-
Reference Speed:- ~8300Â8500 rpm
Limiting Speed:- ~10000Â11000 rpm
Type:- Cylindrical Roller Bearing (Single Row, NU Design)
| HSN Code | 84825000 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | OPG Power Generation Private Limited |
| Packed | Yes |
| Rusted | No |
| Is Published (NPS) | No |
