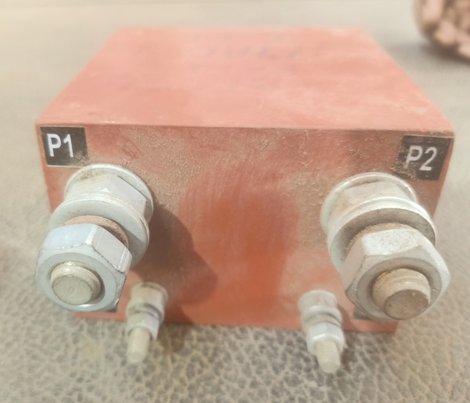

CURRENT TRANSFORMER, 75/1A,7.5VA
₹4,925.77
+ ₹886.64 (18% GST)
Price Excluding Taxes | ₹4,925.77 |
+ (18% GST applicable) | ₹886.64 |
Price Including Taxes | ₹5,812.41 |
Sold Out !
SKU
0479A0845
Available Stock Quantity:
0
Is Returnable:
No
Ageing:
7 Years
Unit of Measurement:
NOS
CURRENT TRANSFORMER, 75/1A,7.5VA
Short Description:- Current Transformer, 75/1A,7.5VA
Technical Specification:- Accuracy Class:- 1
Application:- Metering
Core Shape:- Square
CT Burden:- 7.5 VA
Designation:- Current Transformer
Insulation Type:- Class E
I.Dia/Cross Section Of The Core:- NA
Nominal CT Ratio:- 75/1 A
Type:- Wound Type
Additional Specification:- Current Transformer:- 75/1A,7.5VA
Purpose of Current Transformer:- Measurement
Type of Current Transformer:- Wound Primary
Installation of Current Transformer:- Indoor
Rated primary and secondary currents:- Single - 75/1A
Rated Frequency(Hz):- 50 Hz
Rated Burden in VA:- 7.5VA
Accuracy Class:- 1
Ambient Temperature:- 50°C
Service Condition:- Humidity
Type of System Voltage:- 3 Phase(415V AC)
Rated Insulation level:- 0.66/3 KV
Insulation class:- E
System Earthing:- Solidly earthed
Nominal System voltage:- 0.6KV
Highest system voltage:- 0.66KV
Power fre highest withstand voltage:- 3 KV
Lighting impulse withstand voltage:- NA
Height:- 65mm
Length:- 91mm
Width:- 91mm
Technical Specification:- Accuracy Class:- 1
Application:- Metering
Core Shape:- Square
CT Burden:- 7.5 VA
Designation:- Current Transformer
Insulation Type:- Class E
I.Dia/Cross Section Of The Core:- NA
Nominal CT Ratio:- 75/1 A
Type:- Wound Type
Additional Specification:- Current Transformer:- 75/1A,7.5VA
Purpose of Current Transformer:- Measurement
Type of Current Transformer:- Wound Primary
Installation of Current Transformer:- Indoor
Rated primary and secondary currents:- Single - 75/1A
Rated Frequency(Hz):- 50 Hz
Rated Burden in VA:- 7.5VA
Accuracy Class:- 1
Ambient Temperature:- 50°C
Service Condition:- Humidity
Type of System Voltage:- 3 Phase(415V AC)
Rated Insulation level:- 0.66/3 KV
Insulation class:- E
System Earthing:- Solidly earthed
Nominal System voltage:- 0.6KV
Highest system voltage:- 0.66KV
Power fre highest withstand voltage:- 3 KV
Lighting impulse withstand voltage:- NA
Height:- 65mm
Length:- 91mm
Width:- 91mm
HSN Code | 85041010 |
---|---|
Shipping Option | Self pick up |
Available for | Everyone |
Organization Name | M-S TATA STEEL LIMITED |
Packed | Yes |
Rusted | No |
