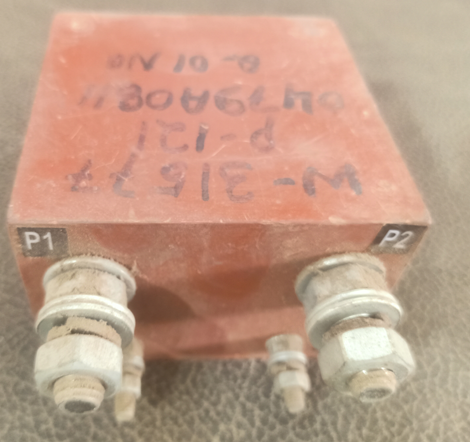

CURRENT TRANSFORMER ,60/1A,7.5VA

Short Description:- CURRENT TRANSFORMER, 60/1A, 7.5VA
Technical Specification:- Accuracy Class:- Class 1
Application:- Metering
Core Shape:- Square
CT Burden:- 7.5VA
Designation:- Current Transformer
Insulation Type:- Class E
I.Dia/Cross Section Of The Core:- NA
Nominal CT Ratio:- 60/1A
TYPE:- Wound Type
Additional Specification:- Current Transformer:- 60/1A,7.5VA
Purpose of Current Transformer:- Measurement
Type of Current Transformer:- Wound Primary
Installation of Current Transformer:- Indoor
Rated primary and secondary currents:- Single - 60/1A
Rated Frequency(Hz):- 50Hz
Rated Burden in VA:- 7.5VA
Accuracy Class:- 1
Ambient Temperature:- 50°C
Service Condition:- Humidity
Type of System Voltage:- 3 Phase(415V AC)
Rated Insulation level:- 0.66/3 KV
Nominal System voltage:- 0.6KV
Highest system voltage:- 0.66KV
Power fre withstand voltage:- 3 KV
Lighting impulse withstand voltage:- NA
Insulation class:- E
System Earthing:- Solidly earthed
Height:- 65mm
Length:- 91mm
Width:- 91mm
Custom Clarification:- Item Description:- Current Transformer
