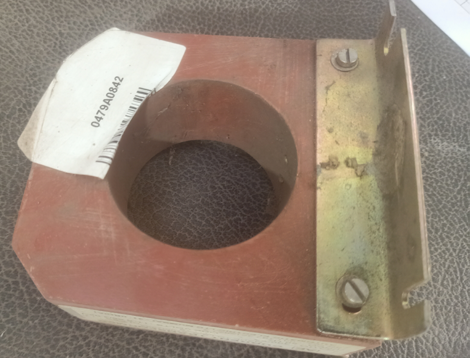

CURRENT TRANSFORMER,400/5A,15VA

Short Description:- Current Transformer,400/5A,15VA
Technical Specification:- Accuracy Class:- 1
Application:- Metering
Core Shape:- Circular
CT Burden:- 15 VA
Designation:- Current Transformer
Insulation Type:- Class E
I.Dia/Cross Section Of The Core:- 80mm
Nominal CT Ratio:- 400/5
Type:- Bar Primary Type
Additional Specification:- Current Transformer,400/5A,15VA
Purpose of Current Transformer:- Measurement
Type of Current Transformer:- Tape Wound/Ring Type
Installation of Current Transformer:- Indoor
Rated primary and secondary currents:- Single - 400/5A
Rated Frequency(Hz):- 50 Hz
Rated Burden in VA:- 15
Accuracy Class:- 1
Ambient Temperature:- 50°C
Service Condition:- Humid
Type of System Voltage:- 3 Phase(415V AC)
Nominal System Voltage:- 0.6 KV
Highest System Voltage:- 0.66 KV
Power Frequency Withstand Voltage:- 3 KV
Lighting Impulse withstand Voltage:- NA
Insulation class:- E
System Earthing:- Solidly earthed
OD:- 140mm
ID:- 80mm
Custom Clarification:- Item Description:- Current Transformer,400/5A,15VA
