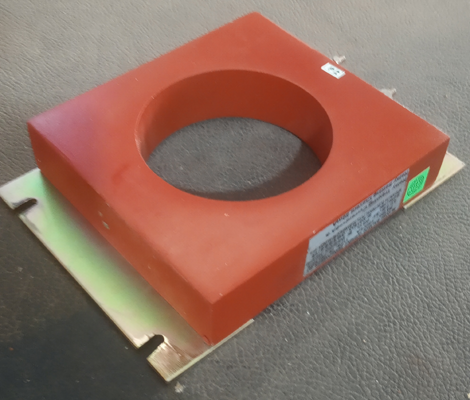

CT;1 ,INDUCTIVE WOUND ,CAST RESIN ,6.

₹2,054.45
+ ₹369.80 (18% GST)
Price Excluding Taxes ₹2,054.45
+ (18% GST applicable) ₹369.80
Price Including Taxes ₹2,424.25
In Stock
SKU
5382A0193
Available Stock Quantity: 6
Is Returnable: No
Ageing: 5 Years
Unit of Measurement: NOS
CT;1 ,INDUCTIVE WOUND ,CAST RESIN ,6.
Short text:-CT;1, Inductive Wound, Cast Resin, 6
Long Text:-
Instrument Type:-Inductive
Transformer Type:-Inductive Wound
Insulator Type:-Cast Resin
Area Of Installation:-Indoor
Nominal System Voltage:-6.6Kv
No Of Core:-1
Core 1 Purpose:-Metering & Protection
Core 1 Primary Current:-150A
Core 1 Secondary Current:-1A
Core 1 Rated Burden:-5VA
Core 1 Accuracy Class:-1
Core 1 Rated Short Time Factor:-1.2 Continuous
Core 1 Instrmnt Safety Factor:->5
Rated Frequency:-50Hz
Highest System Voltage:-7.2Kv
Power Frequency W/S Volt:-20Kv
Lighting Impulse W/S Volt:-20 Kv
System Earthing:-Solid Ground
Rated Sc W/S Capacity:-25 Ka
Rated Sc W/S Duration:-1 S
Special Features:-No Special Features
More Information
HSN Code 72044900
Shipping Option Self pick up
Available for Everyone
Organization Name M-S TATA STEEL LIMITED
Packed Yes
Rusted No
