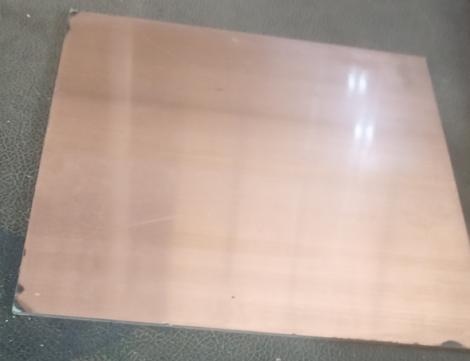

CNDTR;CU-AL BIMETALLIC SHEET ,COPPER CLA
₹487.29
+ ₹87.71 (18% GST)
| Price Excluding Taxes | ₹487.29 |
| + (18% GST applicable) | ₹87.71 |
| Price Including Taxes | ₹575.00 |
In Stock
SKU
5849A0050
Available Stock Quantity:
6
Is Returnable:
No
Ageing:
5 Years
Unit of Measurement:
NOS
CNDTR;CU-AL BIMETALLIC SHEET ,COPPER CLA
Short text:- CNDTR;CU-AL Bimetallic Sheet ,Copper Cla
Long Text:-
Type:-Cu-Al Bimetallic Sheet
Material:-Copper Cladded On Aluminum
Dimension:- 300x300x2mm
Special Features:-No Special Features
Additional UMC Text:-
Technical Specification:-
Material:-Copper 1mm,Aluminium 1mm
Width:- 00300.000mm
Thickness:- 00002.000mm
Additional Specification:-
Technical Specification of the Material (COPAL):-
Purity:-Aluminium:- 99.50% and Copper 99.90%
Composition (By Volume):-Aluminium:- 80.0% and Copper:- 20.0%
Composition (By Weight):-Aluminium:- 55.0% and Copper:- 45.0%
Density at 20Deg C. = 3.95gram / Cubic cm
Maximum Electrical Resistivity at 20Deg.C = 2.6 micro Ohm / cm
Minimum Electrical Conductivity at 20Deg.C = 65% IACS
Custom Clarification:-
Item Description
For connecting Alluminum conductor etc on Copper Terminals etc
Function of the Item
To avoid Bimettalic Galvanic Electro-corrosion
Material of Construction of the Item
Copper and Alluminum
Name of the Main Equipment where the Item is Used
Switchboards, Busbars, Electrical Joints
Long Text:-
Type:-Cu-Al Bimetallic Sheet
Material:-Copper Cladded On Aluminum
Dimension:- 300x300x2mm
Special Features:-No Special Features
Additional UMC Text:-
Technical Specification:-
Material:-Copper 1mm,Aluminium 1mm
Width:- 00300.000mm
Thickness:- 00002.000mm
Additional Specification:-
Technical Specification of the Material (COPAL):-
Purity:-Aluminium:- 99.50% and Copper 99.90%
Composition (By Volume):-Aluminium:- 80.0% and Copper:- 20.0%
Composition (By Weight):-Aluminium:- 55.0% and Copper:- 45.0%
Density at 20Deg C. = 3.95gram / Cubic cm
Maximum Electrical Resistivity at 20Deg.C = 2.6 micro Ohm / cm
Minimum Electrical Conductivity at 20Deg.C = 65% IACS
Custom Clarification:-
Item Description
For connecting Alluminum conductor etc on Copper Terminals etc
Function of the Item
To avoid Bimettalic Galvanic Electro-corrosion
Material of Construction of the Item
Copper and Alluminum
Name of the Main Equipment where the Item is Used
Switchboards, Busbars, Electrical Joints
| HSN Code | 72044900 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | Yes |
| Rusted | No |
