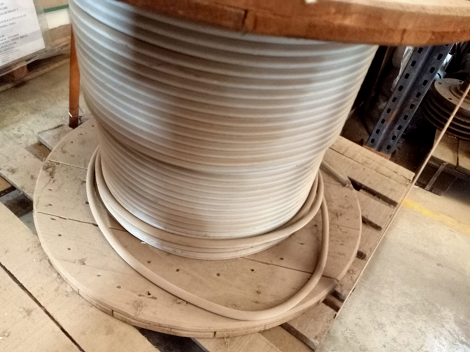

CABLE OELFLEXCLASSIC110 -25x1.5 SQ mm
₹290.83
+ ₹52.35 (18% GST)
| Price Excluding Taxes | ₹290.83 |
| + (18% GST applicable) | ₹52.35 |
| Price Including Taxes | ₹343.18 |
Sold Out !
SKU
0449A0884
Available Stock Quantity:
0
Is Returnable:
No
Ageing:
5 Years
Unit of Measurement:
M
CABLE OELFLEXCLASSIC110 -25x1.5 SQ mm
Cable OELFLEX CLASSIC110 -25x1.5 Sq mm
Part No:-1119325
Make:LAPP
Ãlflex:-Classic 110
OLFLEXR Classic 110 Cables are Vde Approved Power and Control Cables for Occasional Flexible Use And Fixed Installation For Normal Mechanical Stresses
They Are Among Others Designed For Use In Dry, Damp And WeT Rooms
Outdoor Use:-They May Only Be Installed With UV Protection And Considering The Temperature Range.
At Room Temperature They Are Widely Resistant To Acids, alkali-Resistant and Resistant to Certain Oils.
They Are Suitable For Free And Limited Continuously Recurring Movement Without Tensile Load Or Compulsory Guidance.
Application Range As Power And Connecting Cable For Control Systems In Machine Tools
Plant Engineering And Construction,Industrial Machinery,Conveyor Systems, Production And Assembly Lines As Well As In Measuring And Control Technology And Data Processing Systems.
This Cable Is Suitable for Torsion Application In Wind Turbines (Wtg)
The Torsional Load Is Limited To Applications, As They Typically Occur In The Loop Of A Wind Turbine.
Design Based On EN50525-2-51/Vde 0285-525-2-51/HD 21.13 S1+A1/Vde 028
1-13 Approval Vde Reg. NR 7030 Limited To Following Dimension Range:-0.5 Mm2 - 2.5 Mm2 2-65 Cores 4 Mm2 2-7 Cores Conductor Fine Wire
Strands Of Bare Copper, Acc. To IEC 60228 Resp. Vde 0295, Class 5 Core
Insulation Lapp Special Pvc Compound P8/1 Ti2 Acc. To En 50363-3 Resp
. Vde 0207-363-3 With Increased Requirements Core Identification Acc.
To Vde 0293-1, With Or Without Gn/Ye Ground Conductor Black Cores With White Numbers Acc. To Din En 50334 Resp. Vde 0293-334 Outer Sheath PVC Compound Tm2 Acc. To EN 50363-4-1 Resp. Vde 0207-363-4-1 With Increased Requirements Acc. To Lapp Specification Colour:- Silver Grey, Similar Ral 7001
Electrical Properties
Nominal Voltage 300 / 500 V
Test Voltage 4000 V AC
Mechanical And Thermal Properties
Min. Bending Radius Occasional Flexing: 10 X Cable O Fixed Installation: 4 X Cable O
Temperature Range Occasional Flexing: -15 °C Up To +70 °C Max. Conductor Temp. Fixed Installation: -40 °C Up To +80 °C Max. Conductor Temp.
Power Chain Limited To 2-7 Cores And 0.5 ¿ 2.5 Mm2 Min. Bending Radius
15 X Cable O Temperature Range -5°C Up To +70°C Max.Conductor Temp
Travelling Distance Up To 5 M 0.2 ¿ 1 Million Bending Cycles Torsion
Movement In Wtg Tw-0 (5000 Cycles At +5°C)
Tw-1 (2000 Cycles At -20°C) ¿} 150 °/M At 1 Revolution Per Minute Fl
Ammability Flame Retardant In Acc. With Iec 60332-1-2 Resp. Vde 0482-3
32-1-2 Oil Resistance Acc.To Din En 50290-2-22 BZW. VDE 0819-102, TM5
4 Tests Acc. To IEC 60811, En 50395, En 50396 EC-Directives This Cable
Is Conform To The Ec-Directives 2006/95/EC (Low Voltage Directive) And
2002/95/EC And 2011/65/EC (Rohs, Restriction Of The Use Of Certain Hazardous Substances)
Part No:-1119325
Make:LAPP
Ãlflex:-Classic 110
OLFLEXR Classic 110 Cables are Vde Approved Power and Control Cables for Occasional Flexible Use And Fixed Installation For Normal Mechanical Stresses
They Are Among Others Designed For Use In Dry, Damp And WeT Rooms
Outdoor Use:-They May Only Be Installed With UV Protection And Considering The Temperature Range.
At Room Temperature They Are Widely Resistant To Acids, alkali-Resistant and Resistant to Certain Oils.
They Are Suitable For Free And Limited Continuously Recurring Movement Without Tensile Load Or Compulsory Guidance.
Application Range As Power And Connecting Cable For Control Systems In Machine Tools
Plant Engineering And Construction,Industrial Machinery,Conveyor Systems, Production And Assembly Lines As Well As In Measuring And Control Technology And Data Processing Systems.
This Cable Is Suitable for Torsion Application In Wind Turbines (Wtg)
The Torsional Load Is Limited To Applications, As They Typically Occur In The Loop Of A Wind Turbine.
Design Based On EN50525-2-51/Vde 0285-525-2-51/HD 21.13 S1+A1/Vde 028
1-13 Approval Vde Reg. NR 7030 Limited To Following Dimension Range:-0.5 Mm2 - 2.5 Mm2 2-65 Cores 4 Mm2 2-7 Cores Conductor Fine Wire
Strands Of Bare Copper, Acc. To IEC 60228 Resp. Vde 0295, Class 5 Core
Insulation Lapp Special Pvc Compound P8/1 Ti2 Acc. To En 50363-3 Resp
. Vde 0207-363-3 With Increased Requirements Core Identification Acc.
To Vde 0293-1, With Or Without Gn/Ye Ground Conductor Black Cores With White Numbers Acc. To Din En 50334 Resp. Vde 0293-334 Outer Sheath PVC Compound Tm2 Acc. To EN 50363-4-1 Resp. Vde 0207-363-4-1 With Increased Requirements Acc. To Lapp Specification Colour:- Silver Grey, Similar Ral 7001
Electrical Properties
Nominal Voltage 300 / 500 V
Test Voltage 4000 V AC
Mechanical And Thermal Properties
Min. Bending Radius Occasional Flexing: 10 X Cable O Fixed Installation: 4 X Cable O
Temperature Range Occasional Flexing: -15 °C Up To +70 °C Max. Conductor Temp. Fixed Installation: -40 °C Up To +80 °C Max. Conductor Temp.
Power Chain Limited To 2-7 Cores And 0.5 ¿ 2.5 Mm2 Min. Bending Radius
15 X Cable O Temperature Range -5°C Up To +70°C Max.Conductor Temp
Travelling Distance Up To 5 M 0.2 ¿ 1 Million Bending Cycles Torsion
Movement In Wtg Tw-0 (5000 Cycles At +5°C)
Tw-1 (2000 Cycles At -20°C) ¿} 150 °/M At 1 Revolution Per Minute Fl
Ammability Flame Retardant In Acc. With Iec 60332-1-2 Resp. Vde 0482-3
32-1-2 Oil Resistance Acc.To Din En 50290-2-22 BZW. VDE 0819-102, TM5
4 Tests Acc. To IEC 60811, En 50395, En 50396 EC-Directives This Cable
Is Conform To The Ec-Directives 2006/95/EC (Low Voltage Directive) And
2002/95/EC And 2011/65/EC (Rohs, Restriction Of The Use Of Certain Hazardous Substances)
| HSN Code | 85159000 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | No |
| Rusted | No |
