Bearing With Pilow Block UCP-211
₹2,015.37
+ ₹362.77 (18% GST)
| Price Excluding Taxes | ₹2,015.37 |
| 18% GST applicable | ₹362.77 |
| Price Including Taxes | ₹2,378.14 |
In Stock
SKU
UF00021100
Available Stock Quantity:
6
Is Returnable:
No
Ageing:
1.46 years
Unit of Measurement:
Nos

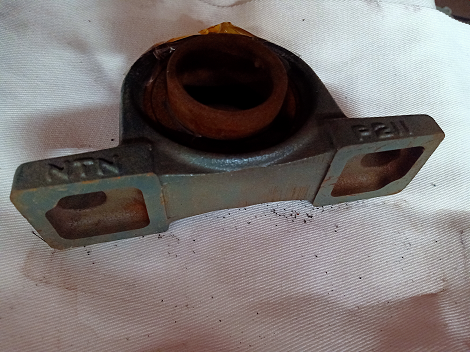

Bearing With Pilow Block UCP-211
Bearing Number: UCP 211
Housing Number: P 211
Shaft Diameter (d): 55.0 mm
Material:Housing: Cast iron Bearing: Chrome steel
Locking Mechanism: Set screw on the inner ring
Features:Strong and stiff design Suitable for applications with both constant and alternating directions of rotation Inner ring extended on both sides
Dimensions:Attachment bolt diameter: 16 mm, Centre height (pillow block): 63.5 mm, Housing overall width: 59 mm, Centre distance between bolt holes: 171 mm, Bearing width (total): 55.6 mm
Load Ratings:Basic dynamic load rating: 43.6 kN
Basic static load rating: 29 kN
Limiting Speed: 3,000 r/min
Sealing Type: Contact seal and flinger on both sides
Housing Number: P 211
Shaft Diameter (d): 55.0 mm
Material:Housing: Cast iron Bearing: Chrome steel
Locking Mechanism: Set screw on the inner ring
Features:Strong and stiff design Suitable for applications with both constant and alternating directions of rotation Inner ring extended on both sides
Dimensions:Attachment bolt diameter: 16 mm, Centre height (pillow block): 63.5 mm, Housing overall width: 59 mm, Centre distance between bolt holes: 171 mm, Bearing width (total): 55.6 mm
Load Ratings:Basic dynamic load rating: 43.6 kN
Basic static load rating: 29 kN
Limiting Speed: 3,000 r/min
Sealing Type: Contact seal and flinger on both sides
| HSN Code | 84821011 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | SUDARSHAN CHEMICAL INDUSTRIES LIMITED |
| Packed | No |
| Rusted | No |
