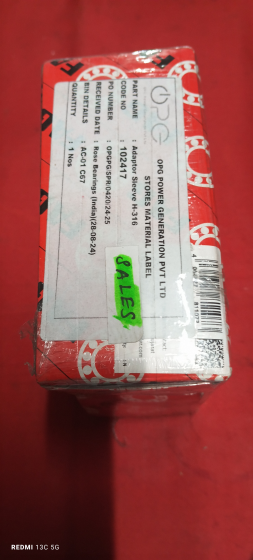

Adaptor Sleeve H-316

Adapter Sleeve H-316
Type: Adapter sleeve for mounting bearings with tapered bore onto cylindrical shafts
Model: H-316
Material Code: 102417
Design: Axially slotted sleeve with tapered outer surface and male thread at the small end
Application: Used with locknut and lock washer for secure bearing mounting; suitable for both plain and stepped shafts
? Technical Specifications
Parameter :- Value :-Sleeve Bore Diameter (d?) :- 70 mm :-Thread Size :- M80×2 :-
Sleeve Length (B?) :- 59 mm :-
Nut Outer Diameter (d?) :- 105 mm :-
Distance Nut to Bearing Face :- 17 mm :-
Mass :- ~1.04 kg :-
Mounting Kit Includes :- KM16 locknut + MB16 lock washer :-
Compatible Bearings :- 21316, 22216, 1316, 2216 series :-Mounting Type :- Pull-type sleeve for tapered bore bearings :-

SNR (NTN Group) – Model: H316
SKF – Available via SKF E-Marketplace
KTSLEEVES – Indian origin, available on Amazon
Ametric (USA) – Alloy steel variant with nut & washer
Material Composition:
Alloy steel or carbon steel, precision machined
Surface treated for corrosion resistance and dimensional stability
HSN Code & GST
Item :- Detail :-
HSN Code :- 84829900 :-
GST Rate :- 18% :-
Classification :- Accessories for bearings (e.g., sleeves, locknuts, washers) :-Heat Stabilization:-Suitable for continuous operation up to 120°C
Wear Resistance: Minimal wear under proper torque and alignment
Expected Life: >20,000 hours when used with compatible bearings
Ageing Factors: Thread fatigue, corrosion, and improper mounting torque
