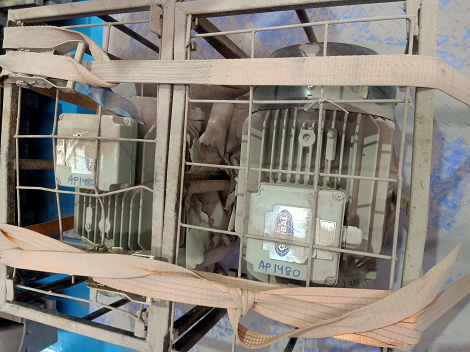

3.7KW Low Volatge SCIM Gl purpose
₹11,758.08
+ ₹2,116.45 (18% GST)
| Price Excluding Taxes | ₹11,758.08 |
| + (18% GST applicable) | ₹2,116.45 |
| Price Including Taxes | ₹13,874.53 |
Sold Out !
SKU
0486A3031
Available Stock Quantity:
0
Is Returnable:
No
Ageing:
5 Years
Unit of Measurement:
NOS
3.7KW Low Volatge SCIM Gl purpose
3.7KW Low Volatge SCIM Gl purpose
Ambient Temparature:- 50 Degree Centigrade
Duty Type:- S1
Enclosure:- Tefc
Frame Size:- 132m
Frequency:- 50 Hertz
Insulation Class:- F
Motor Capacity:- 3.7 Kilo Watt
Mounting:- B3
Phase:- 3
Shaft Datail:-Single,Standard
Synchronous Speed:-1500 Rpm
Type Of Cooling:-Ic411
Voltage:-415 Volt
Additional Specification :-
1.Motor Type:-Squirrel Cage Induction Motor
2.Motor Capacity :- 3.7KW
3.Rated Voltage 415 Volt +10% -15 %
4.Phase :- 3 Phase
5.Connection type-DELTA
6.Frequency - 50 HZ +/- 6 %
7.Frame Size:-132M
8.Insulation Class F
9.Duty type:- S1,CONTINUOUS
10.Mounting :-B3
11.Enclosure type - TEFC
12.Method of Starting ¿ DOL
13.Cooling type -Totally Enclosed Force cooled (IC 411)
14.Type of Bearing DE-BALL-6308ZZC3 NDE-BALL-6308ZZCC3
15.No of Stars- 3 HOT and 4 COLD starts per hr
16.Starting Current at 100% voltage 600 % of FLC, 85% voltage 510% o
f FLC, 80% Voltage 480% of FLC
a) Locked rotor current 600% of FLC
17.Starting Torque -240%
18.Pullout torque:- 300%
19.Full load torque in KG.m:- 2.46
20.Ambient temp:- 50 degree C
21.Efficiency:- 88.5% (at 100% Load,75% Load) , 87.4% at 50% Load
22.Power factor:- 0.81 at 100% Load,0.08 at NO Load, 0.3 at Starting
23.Full load speed:- 1460 rpm
24.Terminal box location RHS from DE, Entry of cable RHS, Cable size 2
R*3C *10 SQMM
25.Terminal Box Fault withstand capacity 50 kA(RMS) FOR 0.25 sec
26.Motor shall be capable of starting and accelerating the load with t
he applicable method of starting, without exceeding the acceptable win
27.Motor shall be capable of satisfactory operation at full load at su
pply voltage of 80% of the rated voltage for 5 minutes commencing from
hot condition
28.Motor shall be capable of developing the rated full load torque eve
n if the supply voltage drops to 80% of the rated voltage. If such ope
ration is envisaged for a period of one second, the pull out torque of
the motor to meet this requirement, shall be at least 480% of the Ful
l load torque
29.The motor shall have replaceable space heater suitable for 240V sin
gle phase 50 Hz AC supply.(NA)
30.Space heater- NA, shall have adequate capacity to maintain internal
temperature
Item Description
DRINKING WATER MAKE UP PUMP
Ambient Temparature:- 50 Degree Centigrade
Duty Type:- S1
Enclosure:- Tefc
Frame Size:- 132m
Frequency:- 50 Hertz
Insulation Class:- F
Motor Capacity:- 3.7 Kilo Watt
Mounting:- B3
Phase:- 3
Shaft Datail:-Single,Standard
Synchronous Speed:-1500 Rpm
Type Of Cooling:-Ic411
Voltage:-415 Volt
Additional Specification :-
1.Motor Type:-Squirrel Cage Induction Motor
2.Motor Capacity :- 3.7KW
3.Rated Voltage 415 Volt +10% -15 %
4.Phase :- 3 Phase
5.Connection type-DELTA
6.Frequency - 50 HZ +/- 6 %
7.Frame Size:-132M
8.Insulation Class F
9.Duty type:- S1,CONTINUOUS
10.Mounting :-B3
11.Enclosure type - TEFC
12.Method of Starting ¿ DOL
13.Cooling type -Totally Enclosed Force cooled (IC 411)
14.Type of Bearing DE-BALL-6308ZZC3 NDE-BALL-6308ZZCC3
15.No of Stars- 3 HOT and 4 COLD starts per hr
16.Starting Current at 100% voltage 600 % of FLC, 85% voltage 510% o
f FLC, 80% Voltage 480% of FLC
a) Locked rotor current 600% of FLC
17.Starting Torque -240%
18.Pullout torque:- 300%
19.Full load torque in KG.m:- 2.46
20.Ambient temp:- 50 degree C
21.Efficiency:- 88.5% (at 100% Load,75% Load) , 87.4% at 50% Load
22.Power factor:- 0.81 at 100% Load,0.08 at NO Load, 0.3 at Starting
23.Full load speed:- 1460 rpm
24.Terminal box location RHS from DE, Entry of cable RHS, Cable size 2
R*3C *10 SQMM
25.Terminal Box Fault withstand capacity 50 kA(RMS) FOR 0.25 sec
26.Motor shall be capable of starting and accelerating the load with t
he applicable method of starting, without exceeding the acceptable win
27.Motor shall be capable of satisfactory operation at full load at su
pply voltage of 80% of the rated voltage for 5 minutes commencing from
hot condition
28.Motor shall be capable of developing the rated full load torque eve
n if the supply voltage drops to 80% of the rated voltage. If such ope
ration is envisaged for a period of one second, the pull out torque of
the motor to meet this requirement, shall be at least 480% of the Ful
l load torque
29.The motor shall have replaceable space heater suitable for 240V sin
gle phase 50 Hz AC supply.(NA)
30.Space heater- NA, shall have adequate capacity to maintain internal
temperature
Item Description
DRINKING WATER MAKE UP PUMP
| HSN Code | 85015210 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | No |
| Rusted | Yes |
