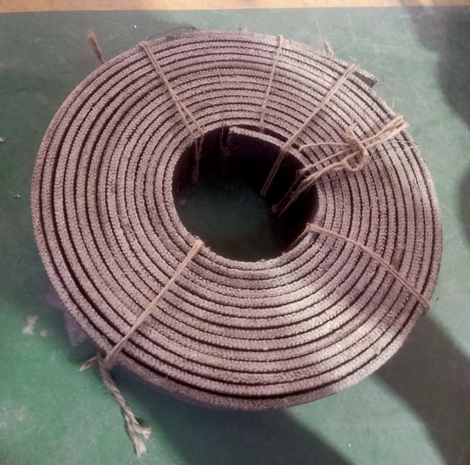

10" BRAKE SHOE LINING
₹1,686.56
+ ₹303.58 (18% GST)
| Price Excluding Taxes | ₹1,686.56 |
| + (18% GST applicable) | ₹303.58 |
| Price Including Taxes | ₹1,990.14 |
In Stock
SKU
1072A1076
Available Stock Quantity:
70
Is Returnable:
No
Ageing:
6 Years
Unit of Measurement:
21
10" BRAKE SHOE LINING
Short Description:- 10"" Brake Shoe Lining
Technical Specification:- Description:- 10"" Brake Shoe Lining
Equipment:- Brake,10"" Dia
Make:- ANY REPUTED
Additional Specification:- 10"" Brake Shoe Lining
A woven non asbestos lining consists of brass wire inserted yarns containing a mixture of organic and inorganic fibres like glass, ceramic etc. The woven webbing is impregnated for through saturation with an Oleo resinous binder. Long slow curing with rolling and compressing and a final temperature step cure bonds the material into a dense flexible and strong product with an excellent friction and wear characteristics
Material used for liner must meet following criteria -
Temperature:- Transient temperature up to 380 degree F
Unit Pressure:- 135 PSI max
Friction Level:- 0.35 Dynamic, 0.40 Static
Physical properties:- Maximum Rubbing Speed 2889 ft/min
Tensile Strength:- 2010 PSI
Custom Clarification:- Item Description:- Liner For Brake Shoe 10""
Function of the Item:- For Relining Of Brake Shoes
Material of Construction of the Item:- Mixture of organic and inorganic fibres like glass, ceramic etc
Name of the Main Equipment where the Item is Used:- Brake
Function of the Main Equipment & Location of the Main Equipment:- Brake
Technical Specification:- Description:- 10"" Brake Shoe Lining
Equipment:- Brake,10"" Dia
Make:- ANY REPUTED
Additional Specification:- 10"" Brake Shoe Lining
A woven non asbestos lining consists of brass wire inserted yarns containing a mixture of organic and inorganic fibres like glass, ceramic etc. The woven webbing is impregnated for through saturation with an Oleo resinous binder. Long slow curing with rolling and compressing and a final temperature step cure bonds the material into a dense flexible and strong product with an excellent friction and wear characteristics
Material used for liner must meet following criteria -
Temperature:- Transient temperature up to 380 degree F
Unit Pressure:- 135 PSI max
Friction Level:- 0.35 Dynamic, 0.40 Static
Physical properties:- Maximum Rubbing Speed 2889 ft/min
Tensile Strength:- 2010 PSI
Custom Clarification:- Item Description:- Liner For Brake Shoe 10""
Function of the Item:- For Relining Of Brake Shoes
Material of Construction of the Item:- Mixture of organic and inorganic fibres like glass, ceramic etc
Name of the Main Equipment where the Item is Used:- Brake
Function of the Main Equipment & Location of the Main Equipment:- Brake
| HSN Code | 84051090 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | M-S TATA STEEL LIMITED |
| Packed | No |
| Rusted | No |
